IoT-Based Intelligent Control System for HP Diaphragm Pumps

This system addresses the challenges faced by high-pressure diaphragm pumps in critical industries such as petrochemical engineering and energy transmission. Traditional pumps are prone to pressure fluctuations, wear of core components, and increased maintenance costs due to high-frequency pulsating loads. The reliance on manual inspections further exacerbates production risks, leading to delayed fault detection and passive responses after malfunctions occur.
To solve these issues, the system integrates an intelligent control platform featuring pressure-resistant hardware, IoT technology, and edge closed-loop control. The hardware design incorporates pressure-resistant sensors and advanced materials to enhance pressure resistance and anti-pulsation capabilities, ensuring stable operation under high pressure and intense vibration. This allows for accurate, real-time data collection of pressure, flow rate, vibration, and temperature, providing a reliable foundation for monitoring equipment conditions.
The system uses edge closed-loop control to adjust pressure and flow rate based on real-time data, mitigating load impacts from pressure surges and reducing component wear, thus extending the service life of diaphragms and seals. It also includes an overpressure interlock mechanism that cuts off circuits when pressure exceeds safe limits, preventing safety incidents.

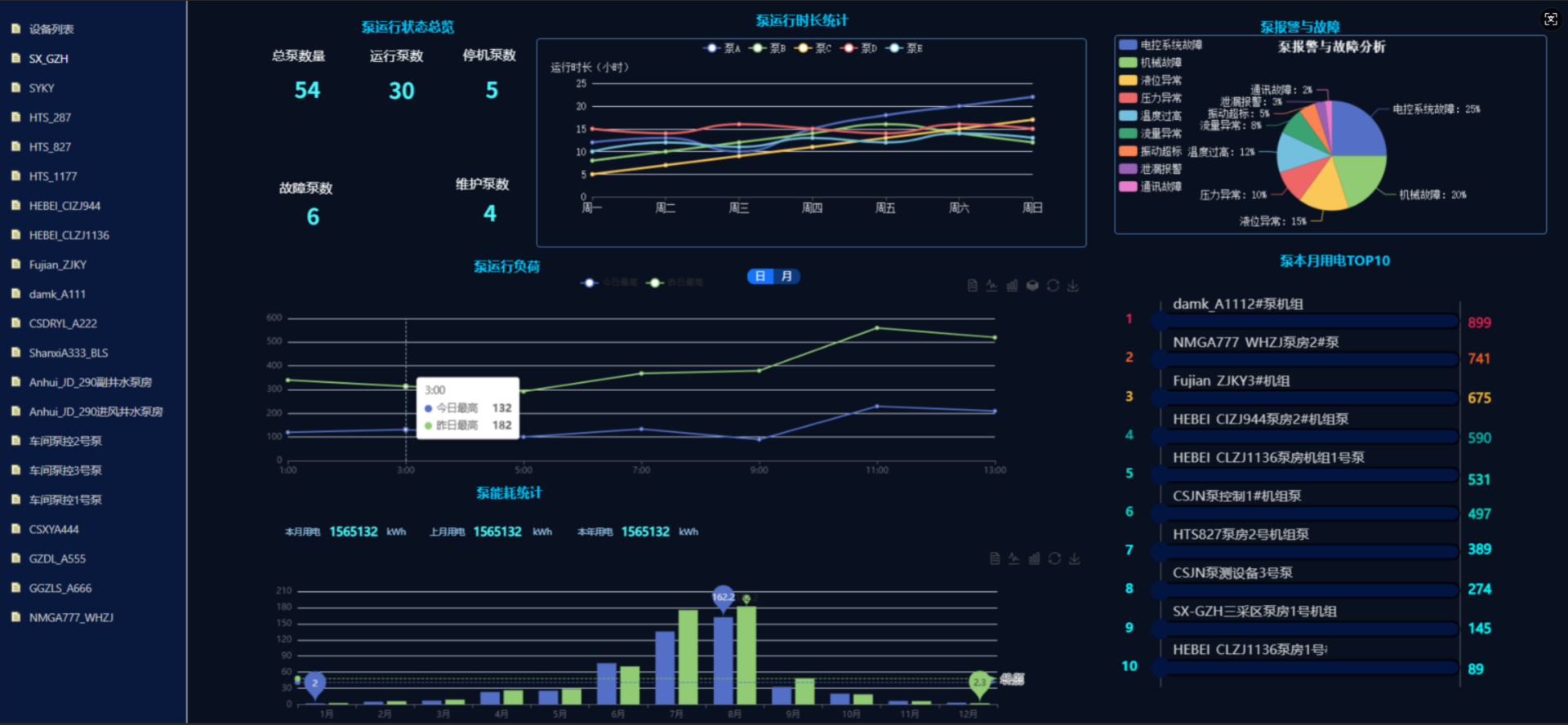

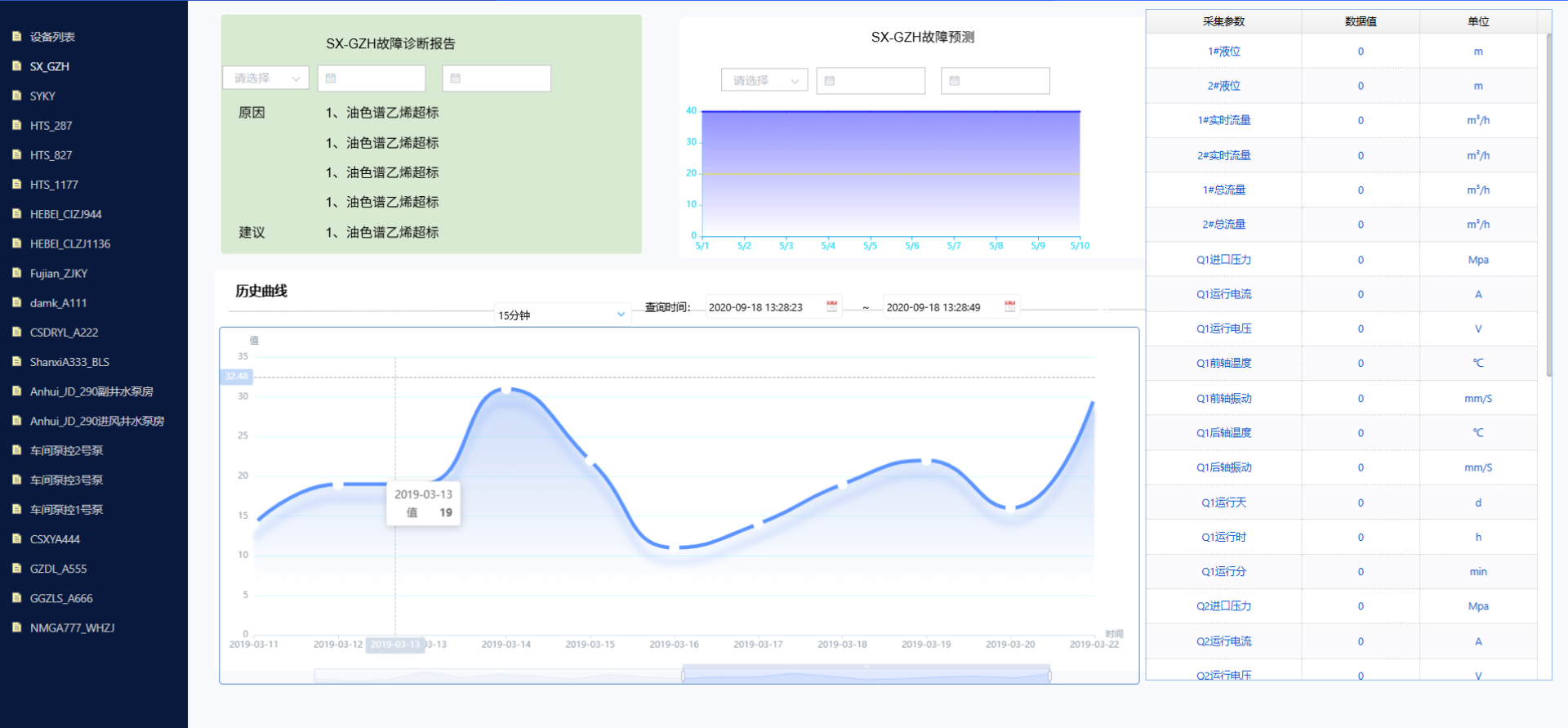

Unlike traditional PLC systems, this technology leverages multi-source data fusion algorithms to analyze and predict equipment behavior. Trend prediction models enable early detection of operational changes, and self-optimization capabilities adjust control parameters for optimal performance. The IoT-based remote monitoring platform allows real-time visual tracking of equipment status, improving operational efficiency. Predictive maintenance capabilities proactively identify risks and provide early warnings, guiding targeted maintenance and reducing labor costs.
This system represents a shift from passive to proactive maintenance, from single-point control to global coordination, and from manual operations to intelligent management. It enhances operational reliability and safety while offering scalability to suit different working conditions, making it an ideal solution for intelligent equipment upgrading in high-pressure pump applications.
